Harvey Tool
970331
HT - 970331
Specifications
| Coating/Finish | UN |
|---|---|
| Type | I |
| Overall Length (Inch) | 2-1/2 |
| Diameter (Inch) | 1/4 |
| Short Description | 0.2500" (1/4) Cutter DIA x 0.0310" (1/32) Width x 0.3750" (3/8) Neck Length - Standard Slotting - 4 FL |

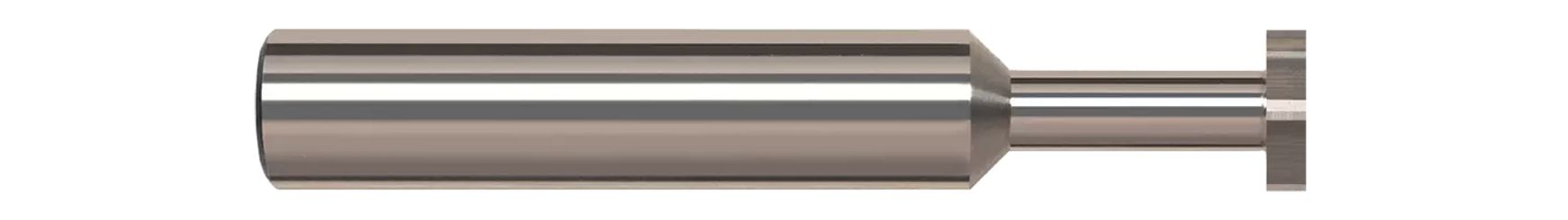

| Long Description | 0.2500" (1/4) Cutter DIA x 0.0310" (1/32) Width x 0.3750" (3/8) Neck Length CarbideSquare Standard Keyseat Cutter for Non-Ferrous, 4 Flutes |
| Cutter Width | 1/32 Inch |
| Shank Size (Fraction) | 1/4 Inch |
| Neck Diameter | 1/8 Inch |
| Cutter Width (Decimal) | 0.04 |
| Shank Size (Decimal) | 0.25 |
| Neck Diameter (Decimal) | 0.13 |
| Number Of Flutes | 4 |
| Neck Length (Decimal) | 0.38 |
| Neck Length (Fraction) | 3/8 |
| Radial Depth of Cut (Decimal) | 0.06 |
| Reach Multiple | 1.5x |
| Base Item Number | 970331 |
| Neck Diameter (Inch) | 0.13 |
| Product Type | Industrial Supplies |
