Harvey Tool
971612-C3

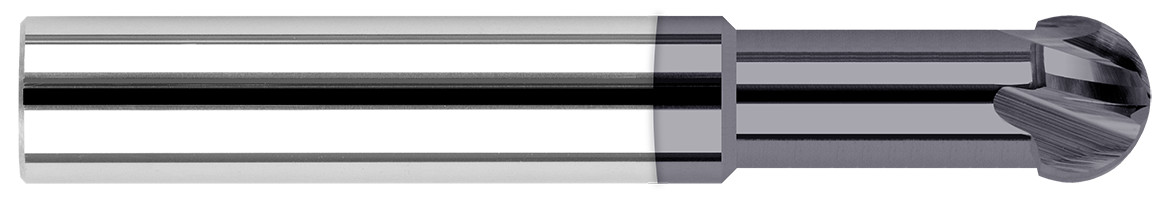

Undercutting End Mill - 220°
Specifications
| Long Description | 0.1875" (3/16) Cutter DIA x 1.5000" (1-1/2) Neck Length x 220° Carbide Undercutting End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 0.1875" (3/16) Cutter DIA x 1.5000" (1-1/2) Neck Length x 220° Wrap Angle - 4 FL - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.033 |
| Wrap Angle | 220 |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.1875" (3/16) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.1410" |
| Neck Length | 1.5000" (1-1/2) |
| Coating | C3 |
| Length of Cut | 0.1260" |
| Radius | 0.0937" (3/32) |
