Harvey Tool
973012
HT - 973012
Specifications
| Shank Diameter (Inch) | 5/8 |
|---|---|
| Overall Length (Inch) | 3-1/2 |
| Coating/Finish | UN |
| Number Of Flutes | 3 |
| Short Description | 0.1870" (3/16) Radius x 0.2480" Pilot DIA - 5° Flare - 3 FL |

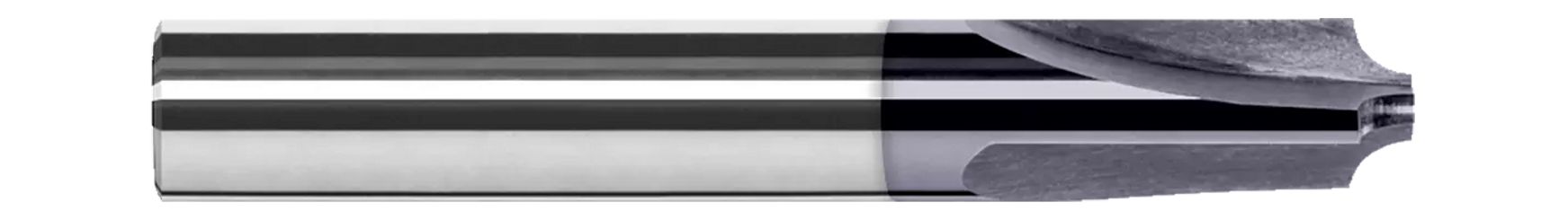

| Long Description | 0.1870" (3/16) Radius x 0.2480" Pilot DIA Carbide 5° Flare Corner Rounding End Mill, 3 Flutes |
| Pilot Diameter (Decimal) | 0.25 |
| Pilot Flare | 5 |
| Radius (Decimal) | 0.19 |
| Radius (Fraction) | 3/16 |
| Shoulder Flare | 5 |
| Base Item Number | 973012 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.6250" (5/8) |
| Weight | 0.487 |
| Overall Length | 3.5000" (3-1/2) |
| Profile | Corner Rounder |
| Metric | N |
| Radius | 0.1870" (3/16) |
