Harvey Tool
974310-C3

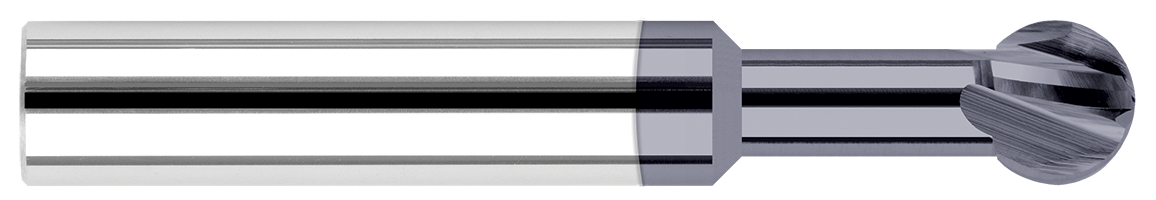

Undercutting End Mill - 270°
Specifications
| Type | I |
|---|---|
| Long Description | 0.1562" (5/32) Cutter DIA x 0.1870" (3/16) Neck Length x 270° Carbide Undercutting End Mill, 4 Flutes, AlTiN Coated |
| Short Description | 0.1562" (5/32) Cutter DIA x 0.1870" (3/16) Neck Length x 270° Wrap Angle - 4 FL - AlTiN Coated |
| Shank Diameter | 0.1875" (3/16) |
| Flutes | 4 |
| Weight | 0.026 |
| Neck Angle | 0 |
| Wrap Angle | 270 |
| Overall Length | 2.0000" (2) |
| Cutter Diameter | 0.1562" (5/32) |
| Profile | Spherical |
| Metric | N |
| Neck Diameter | 0.0980" (2.5 mm) |
| Neck Length | 0.1870" (3/16) |
| Coating | C3 |
| Length of Cut | 0.1330" |
| Radius | 0.0781" (5/64) |
