Harvey Tool
980093
HT - 980093
Specifications
| Coating/Finish | UN |
|---|---|
| Type | II |
| Overall Length (Inch) | 2 |
| Diameter (Inch) | 3/16 |
| Short Description | 0.1875" (3/16) Cutter DIA x 0.0930" (3/32) Width x 0.0930" (3/32) Neck Length - Deep Slotting - 6 FL |

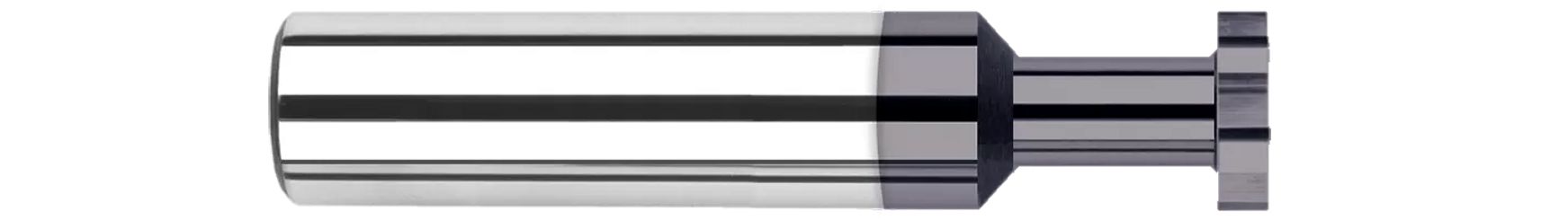

| Long Description | 0.1875" (3/16) Cutter DIA x 0.0930" (3/32) Width x 0.0930" (3/32) Neck Length CarbideSquare Deep Keyseat Cutter, 6 Flutes |
| Cutter Width | 3/32 Inch |
| Shank Size (Fraction) | 3/16 Inch |
| Neck Diameter | 1/16 Inch |
| Cutter Width (Decimal) | 0.09 |
| Shank Size (Decimal) | 0.19 |
| Neck Diameter (Decimal) | 0.07 |
| Number Of Flutes | 6 |
| Neck Length (Decimal) | 0.1 |
| Neck Length (Fraction) | 3/32 |
| Radial Depth of Cut (Decimal) | 0.06 |
| Reach Multiple | 0.5x |
| Base Item Number | 980093 |
| Neck Diameter (Inch) | 0.07 |
| Product Type | Industrial Supplies |
