Harvey Tool
980578
HT - 980578
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 5/64 |
| Length Of Cut (Inch) | 0.07 |
| Coating/Finish | UN |
| Neck Diameter (Decimal) | 0.04 |
| Short Description | 0.0780" (5/64) Cutter DIA x 0.1250" (1/8) Neck Length x 270° Wrap Angle - 15 RH Teeth, 12 LH Teeth |

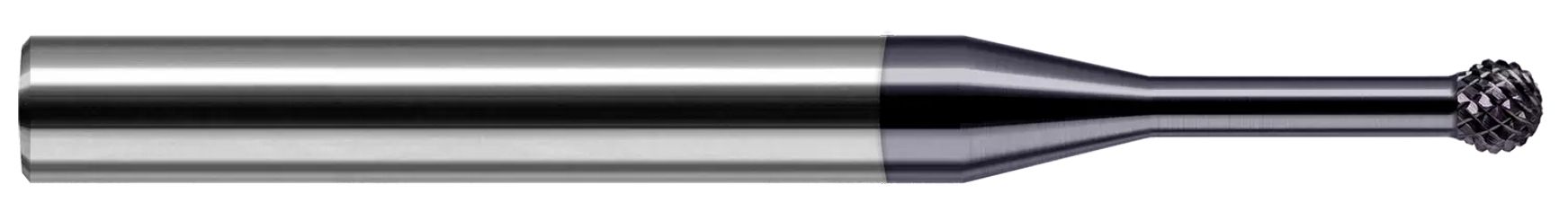

| Long Description | 0.0780" (5/64) Cutter DIA x 0.1250" (1/8) Neck Length x 270° Carbide Deburring Undercut End Mill, 15 RH Teeth, 12 LH Teeth |
| Shank Size | 1/8 Inch |
| Shank Size (Decimal) | 0.13 |
| Neck Length (Decimal) | 0.13 |
| Neck Length (Fraction) | 1/8 |
| Metric | No |
| Left Hand Teeth | 12 |
| Overall Reach (Decimal) | 0.2 |
| Radius (Decimal) | 0.04 |
| Right Hand Teeth | 15 |
| Wrap Angle | 270 |
| Base Item Number | 980578 |
| Neck Diameter (Inch) | 0.04 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0780" (5/64) |
| Profile | Spherical |
| Neck Diameter | 0.0350" (.9 mm) |
| Neck Length | 0.1250" (1/8) |
| Length of Cut | 0.0670" |
| Radius | 0.0390" |
