Harvey Tool
982810-C4

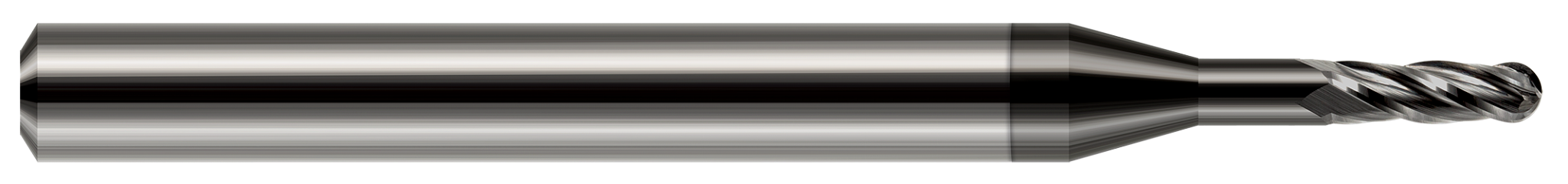

Miniature End Mill - 4 Flute - Ball
Specifications
| Long Description | 0.0100" Cutter DIA x 0.0300" Length of Cut x 0.0500" Reach Carbide Ball End Mill, 4 Flutes, Amorphous Diamond Coated |
|---|---|
| Short Description | 4 FL - 0.0100" Cutter DIA x 0.0300" LOC x 0.0500" Reach - Amorphous Diamond Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0100" |
| Profile | Ball |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0092" |
| Neck Length | 0.0200" |
| Coating | C4 |
| Length of Cut | 0.0300" |
