Harvey Tool
982812-C3

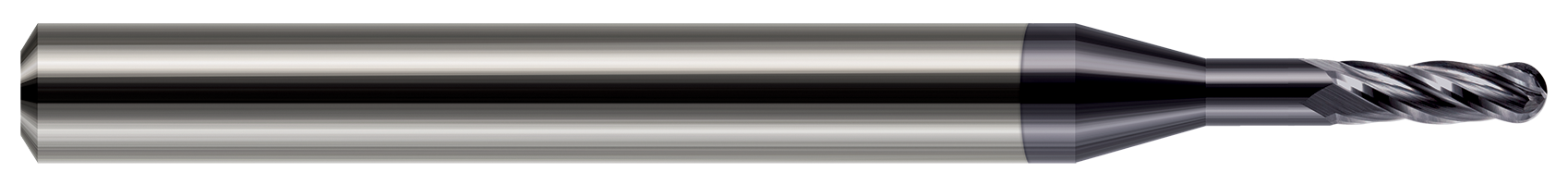

Miniature End Mill - 4 Flute - Ball
Specifications
| Long Description | 0.0120" (.3 mm) Cutter DIA x 0.0360" Length of Cut x 0.0600" Reach Carbide Ball End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0120" (.3 mm) Cutter DIA x 0.0360" LOC x 0.0600" Reach - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (3x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0120" (.3 mm) |
| Profile | Ball |
| Reach Multiple | (5x) |
| Metric | N |
| Neck Diameter | 0.0112" |
| Neck Length | 0.0240" |
| Coating | C3 |
| Length of Cut | 0.0360" |
