Harvey Tool
986608-C6
HT - 986608-C6
Specifications
| Overall Length (Inch) | 1-1/2 |
|---|---|
| Diameter (Inch) | 0.08 |
| Length Of Cut (Inch) | 0.02 |
| Coating/Finish | C6 |
| Neck Diameter (Decimal) | 0.05 |
| Short Description | #3 - 0.0720" Cutter DIA x 0.1560" (5/32) Reach - 3 FL - AlTiN Nano Coated |

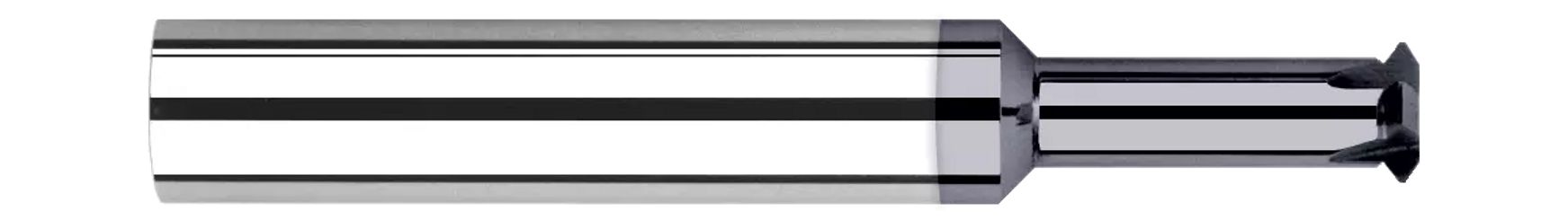

| Long Description | 0.0720" Cutter DIA x 0.1560" (5/32) Reach Carbide Single Form #3 Thread Milling Cutter for Hardened Steels, 3 Flutes, AlTiN Nano Coated |
| Shank Size | 1/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.13 |
| Number Of Flutes | 3 |
| Angle per Side | 30 Degrees |
| Metric | No |
| Size | 3 |
| Max Depth of Thread (Decimal) | 0.16 |
| Max Depth of Thread (Fraction) | 5/32 |
| Tip Flat (Decimal) | 0.0018 |
| Base Item Number | 986608-C6 |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.1250" (1/8) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0720" |
| Profile | Single Form |
| Neck Diameter | 0.0460" |
| Length of Cut | 0.0160" |
