Harvey Tool
987166-C3
HT - 987166-C3
Specifications
| Overall Length (Inch) | 3-1/2 |
|---|---|
| Diameter (Inch) | 0.3 |
| Length Of Cut (Inch) | 1-1/8 |
| Coating/Finish | C3 |
| Short Description | 3/8-24 - 0.3000" Cutter DIA x 1.1250" (1-1/8) LOC - 4 FL - AlTiN Coated |

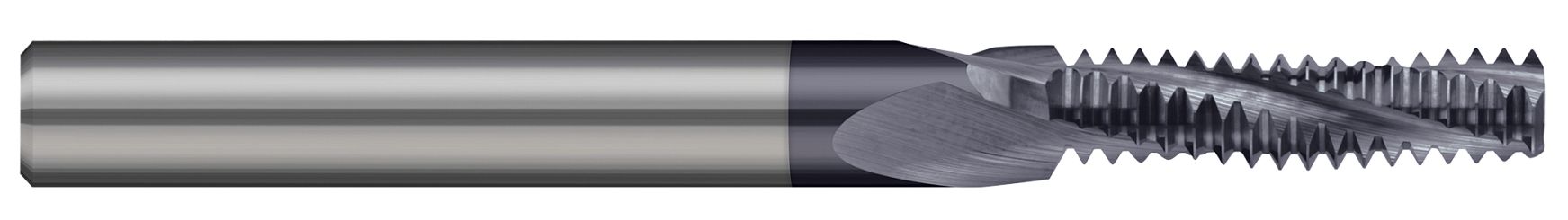

| Long Description | 0.3000" Cutter DIA x 1.1250" (1-1/8) Length of Cut Carbide Multi-Form 3/8-24 Thread Milling Cutter, 4 Flutes, AlTiN Coated |
| Shank Size | 3/8 Inch |
| Included Angle | 60 Degrees |
| Shank Size (Decimal) | 0.38 |
| Number Of Flutes | 4 |
| Metric | No |
| Length of Cut (Decimal) | 1.13 |
| Size | 3/8-24 |
| Base Item Number | 987166-C3 |
| Product Type | Industrial Supplies |
| Shank Diameter | 0.3750" (3/8) |
| Weight | 0.157 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.3000" |
| Profile | Multi-Form |
| Length of Cut | 1.1250" (1-1/8) |
