Harvey Tool
987194

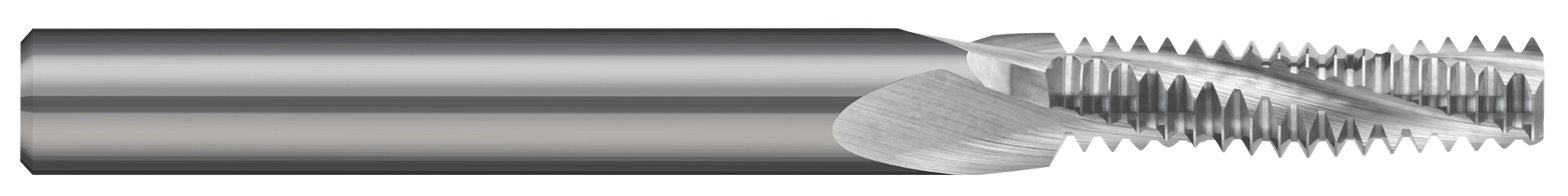

Thread Milling Cutters - Multi-Form
Specifications
| Short Description | 9/16-18 - 0.4500" Cutter DIA x 1.5000" (1-1/2) LOC - 4 FL |
|---|---|
| Long Description | 0.4500" Cutter DIA x 1.5000" (1-1/2) Length of Cut Carbide Multi-Form 9/16-18 Thread Milling Cutter, 4 Flutes |
| Included Angle | 60 |
| Metric | N |
| Size | 9/16-18 |
| Coating | UN |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weight | 0.271 |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.4500" |
| Profile | Multi-Form |
| Length of Cut | 1.5000" (1-1/2) |
