Harvey Tool
997985-C3

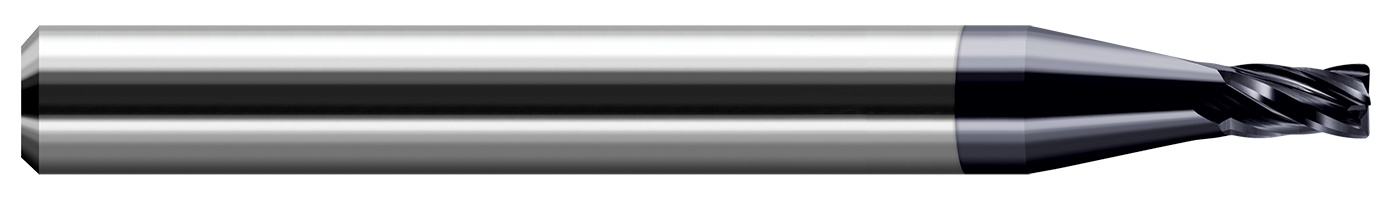

Miniature End Mill - 4 Flute - Corner Radius
Specifications
| Long Description | 0.0850" Cutter DIA x 0.0150" (1/64) Radius x 0.1280" Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4 FL - 0.0850" Cutter DIA x 0.0150" (1/64) Radius x 0.1280" LOC - AlTiN Coated |
| Shank Diameter | 0.1250" (1/8) |
| Flutes | 4 |
| LOC Multiple | (1.5x) |
| Weight | 0.009 |
| Overall Length | 1.5000" (1-1/2) |
| Cutter Diameter | 0.0850" |
| Profile | Corner Radius |
| Metric | N |
| Coating | C3 |
| Length of Cut | 0.1280" |
| Corner Radius | 0.0150" (1/64) |
