Harvey Tool
998315-C3
HT - 998315-C3
Specifications
| Length Of Cut (Inch) | 0.7 |
|---|---|
| Overall Length (Inch) | 3 |
| Type | I |
| Coating/Finish | C3 |
| Number Of Flutes | 2 |
| Short Description | 0.3750" (3/8) Shank DIA x 15° per side DE- 2 FL - AlTiN Coated |
| Double Ended | Yes |
| Shank Size | 3/8 Inch |
| Overall Length | 3.0000" (3) |
| Shank Size (Decimal) | 0.38 |

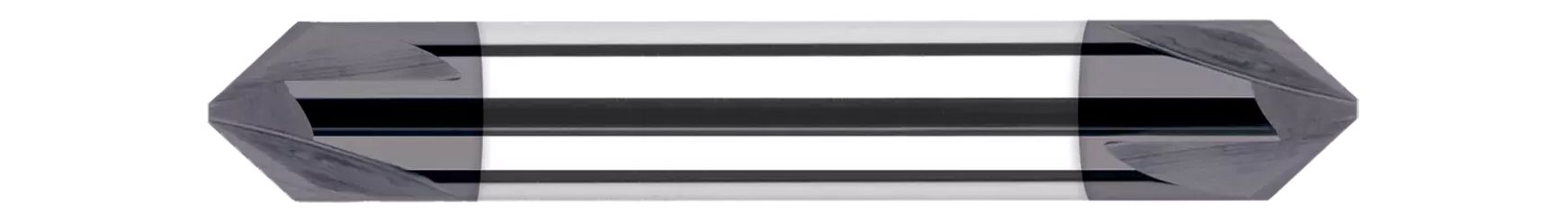

| Long Description | 0.3750" (3/8) Shank DIA x 15° per side Carbide Pointed Chamfer Cutter DE, 2 Flutes, AlTiN Coated |
| Metric | No |
| Included Angle | 30 Degrees |
| Angle per Side | 15 Degrees |
| Tip (Decimal) | 0.01 |
| Length of Cut | 0.7000" |
| Base Item Number | 998315-C3 |
| Product Type | Industrial Supplies |
| Weight | 0.097 |
| Shank Diameter | 0.3750" (3/8) |
| Profile | Pointed |
