Harvey Tool
ACD1181-C6

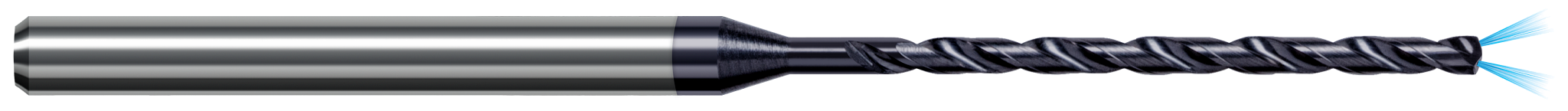

High Performance Drill for Coolant-Through
Specifications
| Short Description | 3.000 mm Drill DIA x 42.000 mm Flute Length - 2 FL - AlTiN Nano Coated |
|---|---|
| Point Angle | 140 |
| Long Description | 3.000 mm Drill DIA x 42.000 mm Flute Length Carbide HP Drill for Deep Hole, 2 Flutes, AlTiN Nano Coated |
| Weight | 0.029 |
| Shank Diameter | 4.000 mm |
| Flute Length | 42.000 mm |
| Flutes | 2 |
| LOC Multiple | (12x) |
| Overall Length | 100.000 mm |
| Profile | Drill |
| Metric | Y |
| Coating | C6 |
