Harvey Tool
BAA1909-C4

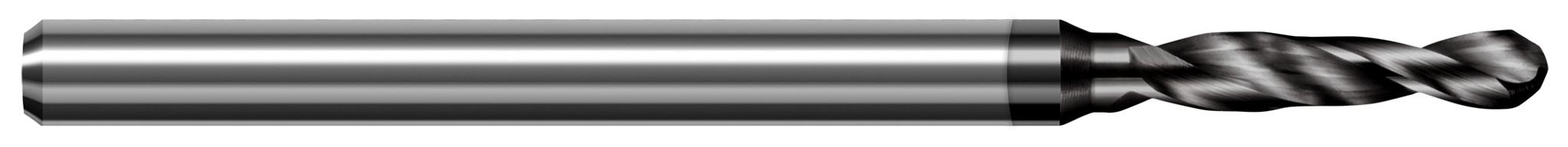

High Performance Drill for Composite
Specifications
| Short Description | 4.851 mm Drill DIA x 23.000 mm Flute Length - 2 FL - Amorphous Diamond Coated |
|---|---|
| Point Angle | 130 |
| Long Description | 4.851 mm Drill DIA x 23.000 mm Flute Length Carbide HP Drill for Composites, 2 Flutes, Amorphous Diamond Coated |
| Weight | 0.04 |
| Shank Diameter | 6.000 mm |
| Flute Length | 23.000 mm |
| Flutes | 2 |
| LOC Multiple | (3x) |
| Overall Length | 63.000 mm |
| Profile | Drill |
| Metric | Y |
| Secondary Point Angle | 60 |
| Coating | C4 |
