Harvey Tool
DDA0520-C4
HT - DDA0520-C4
Specifications
| Flute Length (Metric) | 9 |
|---|---|
| Shank Size (Metric) | 3 |
| Overall Length (Metric) | 50 |
| Diameter (Metric) | 1.32 |
| Coating/Finish | C4 |
| Number Of Flutes | 2 |

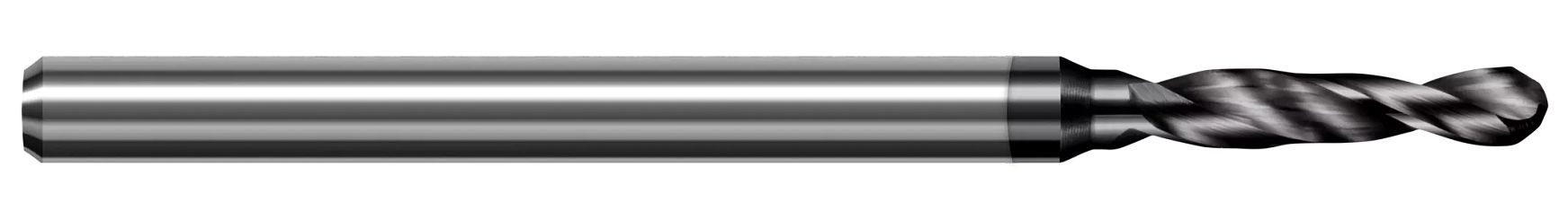

| Short Description | 1.320 mm Drill DIA x 9.000 mm Flute Length - 2 FL - Amorphous Diamond Coated |
| Long Description | 1.320 mm Drill DIA x 9.000 mm Flute Length Carbide HP Drill for Composites, 2 Flutes, Amorphous Diamond Coated |
| Metric | Yes |
| Point Angle | 130 Degrees |
| Secondary Point Angle | 60 Degrres |
| LOC Multiple | 5x |
| Shank Diameter | 3.000 mm |
| Base Item Number | DDA0520-C4 |
| Product Type | Industrial Supplies |
| Flute Length | 9.000 mm |
| Weight | 0.009 |
| Overall Length | 50.000 mm |
| Profile | Drill |
