Harvey Tool
GNB0320-C8

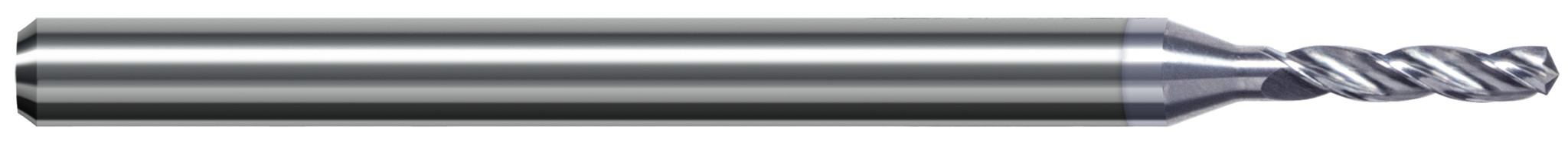

High Performance Drill for Aluminum Alloys
Specifications
| Short Description | 0.0320" Drill DIA x 0.2160" Flute Length - 3 FL - TiB2 Coated |
|---|---|
| Point Angle | 130 |
| Long Description | 0.0320" Drill DIA x 0.2160" Flute Length Carbide HP Drill for Aluminum Alloys, 3 Flutes, TiB2 Coated |
| Weight | 0.011 |
| Shank Diameter | 0.1250" (1/8) |
| Flute Length | 0.2160" |
| Flutes | 3 |
| LOC Multiple | (5x) |
| Overall Length | 2.0000" (2) |
| Profile | Drill |
| Metric | N |
| Coating | C8 |
