Harvey Tool
RSB2810-C3

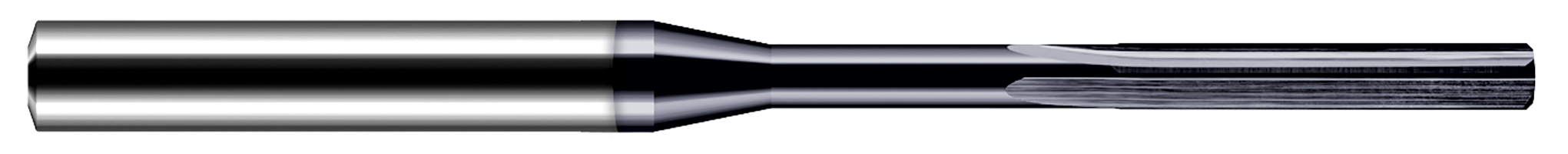

Miniature Reamer
Specifications
| Long Description | 0.2810" (9/32) Reamer DIA x 1.1250" (1-1/8) Margin Length Carbide Reamer, 6 Flutes, AlTiN Coated |
|---|---|
| Short Description | 0.2810" (9/32) Reamer DIA x 1.1250" (1-1/8) Margin Length - 6 FL - AlTiN Coated |
| Shank Diameter | 0.3125" (5/16) |
| Flutes | 6 |
| LOC Multiple | (4x) |
| Weight | 0.201 |
| Overall Length | 6.0000" (6) |
| Profile | Reamer |
| Reach Multiple | (11x) |
| Metric | N |
| Neck Diameter | 0.2730" |
| Coating | C3 |
| Chamfer Length | 0.0225" |
| Angle per Side | 45 |
| Included Angle | 90 |
