Harvey Tool
RSB3150

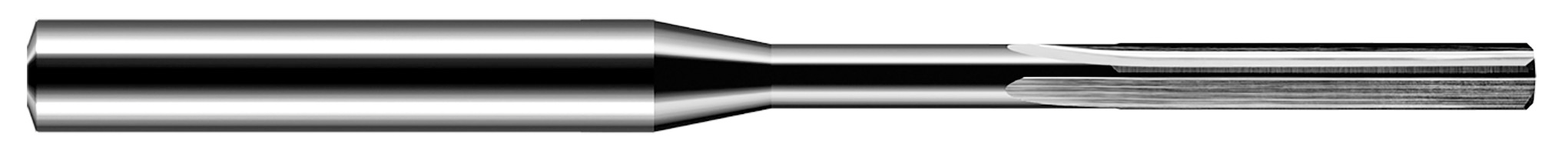

Miniature Reamer
Specifications
| Long Description | 0.3150" (8 mm) Reamer DIA x 1.1250" (1-1/8) Margin Length Carbide Reamer, 6 Flutes |
|---|---|
| Short Description | 0.3150" (8 mm) Reamer DIA x 1.1250" (1-1/8) Margin Length - 6 FL |
| Shank Diameter | 0.3750" (3/8) |
| Flutes | 6 |
| LOC Multiple | (4x) |
| Weight | 0.273 |
| Overall Length | 6.0000" (6) |
| Profile | Reamer |
| Reach Multiple | (10x) |
| Metric | N |
| Neck Diameter | 0.3050" |
| Coating | UN |
| Chamfer Length | 0.0252" |
| Angle per Side | 45 |
| Included Angle | 90 |
