Harvey Tool
RSC4750-C3

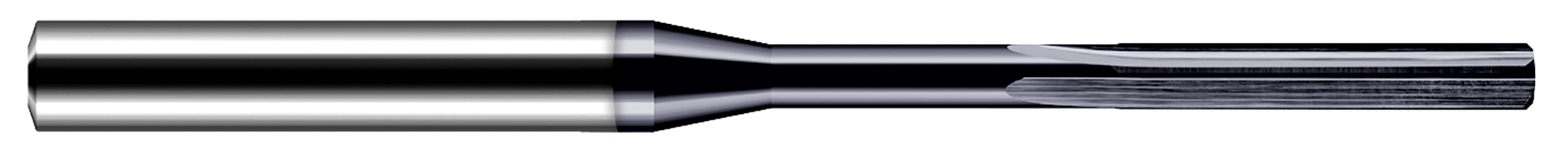

Miniature Reamer - Metric
Specifications
| Long Description | 4.750 mm Reamer DIA x 26.000 mm Margin Length Carbide Reamer, 4 Flutes, AlTiN Coated |
|---|---|
| Short Description | 4.750 mm Reamer DIA x 26.000 mm Margin Length - 4 FL - AlTiN Coated |
| Shank Diameter | 6.000 mm |
| Flutes | 4 |
| LOC Multiple | (6x) |
| Weight | 0.066 |
| Overall Length | 100.000 mm |
| Profile | Reamer |
| Reach Multiple | (11x) |
| Metric | Y |
| Neck Diameter | 4.650 mm |
| Coating | C3 |
| Chamfer Length | 0.428 mm |
| Angle per Side | 45 |
| Included Angle | 90 |
