Helical Solutions
84413
HEV-M-60187-BN
Specifications

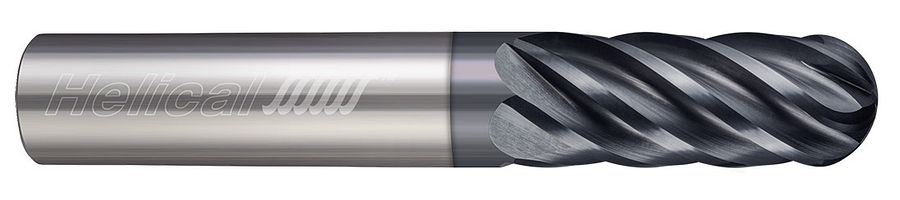

| Short Description | HEV-M-60187-BN End Mills for Steels - 6 Flute - Ball - Variable Pitch |
|---|---|
| Shank Diameter | 0.1875" (3/16) |
| Center Cutting | true |
| Overall Length | 2.5000" (2-1/2) |
| Length of Cut | 0.7500" (3/4) |
| Metric | N |
| Long Description | 0.1875" (3/16) Cutter DIA x 0.1875" (3/16) Shank DIA x 0.0938" Radius x 0.7500" (3/4) Length of Cut x 2.5000" (2-1/2) Overall Length Carbide Ball End Mill for Steel, 6 Flutes, APLUS Coated - (HEV-M-60187-BN) |
| Coolant Through | N |
| Flutes | 6 |
| Weldon Flat | N |
| Cutter Diameter | 0.1875" (3/16) |
| Coating | APLUS |
| Corner Radius | 0.0938" |
