Helical Solutions
84439
HFAL-RN-040-20125
Specifications

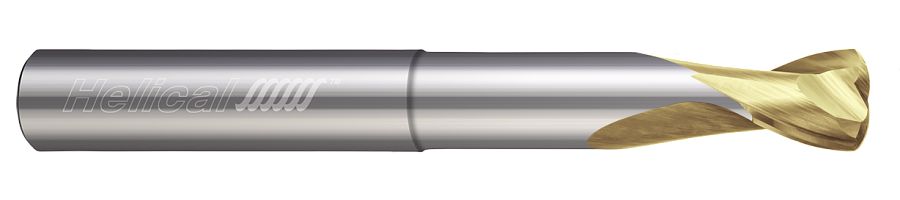

| Short Description | HFAL-RN-040-20125 High Feed End Mills - Aluminum - Variable Pitch - Reduced Neck |
|---|---|
| Long Description | 0.1250" (1/8) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.1250" (1/8) Length of Cut x 2.5000" (2-1/2) Overall Length x 0.5000" (1/2) Reach Carbide High Feed End Mill, 2 Flutes, ZPLUS Coated - (HFAL-RN-040-20125) |
| Metric | N |
| Coolant Through | N |
| Coating | ZPLUS |
| Shank Diameter | 0.2500" (1/4) |
| Flutes | 2 |
| Weldon Flat | N |
| Overall Length | 2.5000" (2-1/2) |
| Cutter Diameter | 0.1250" (1/8) |
| Neck Diameter | 0.1180" (3 mm) |
| Length of Cut | 0.1250" (1/8) |
| Center Cutting | false |
