Helical Solutions
86268
HMAF-AL-40500-04-OVL
Specifications

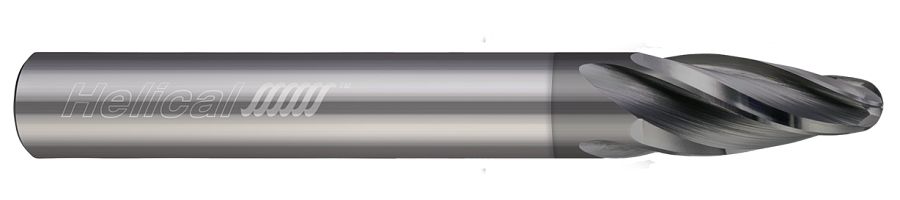

| Short Description | HMAF-AL-40500-04-OVL End Mills for Aluminum - Multi-Axis Finishers - 4 Flute - Oval Form |
|---|---|
| Long Description | 0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 4.0000" (4) Major Radius x 0.1250" (1/8) Tip Radius x 1.1013" Length of Cut x 3.0000" (3) Overall Length Carbide Oval Multi-Axis Finisher for Aluminum, 4 Flutes, NPLUS Coated - (HMAF-AL-40500-04-OVL) |
| Metric | N |
| Coolant Through | N |
| Coating | NPLUS |
| Shank Diameter | 0.5000" (1/2) |
| Flutes | 4 |
| Weldon Flat | N |
| Overall Length | 3.0000" (3) |
| Cutter Diameter | 0.5000" (1/2) |
| Length of Cut | 1.1013" |
| Center Cutting | true |
