Helical Solutions
86323
HMAF-FE-60625-04-OVL
Specifications

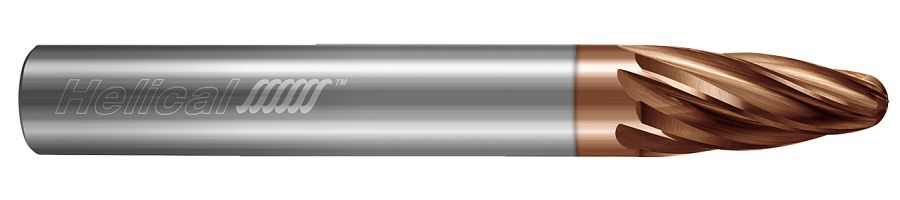

| Short Description | HMAF-FE-60625-04-OVL End Mills for Stainless & High Temp - Multi-Axis Finishers - 6 Flute - Oval Form |
|---|---|
| Long Description | 0.6250" (5/8) Cutter DIA x 0.6250" (5/8) Shank DIA x 5.0000" (5) Major Radius x 0.1563" (5/32) Tip Radius x 1.3766" Length of Cut x 3.5000" (3-1/2) Overall Length Carbide Oval Multi-Axis Finisher for Stainless and High Temp, 6 Flutes, TPLUS Coated - (HMAF-FE-60625-04-OVL) |
| Metric | N |
| Coolant Through | N |
| Coating | TPLUS |
| Shank Diameter | 0.6250" (5/8) |
| Flutes | 6 |
| Weldon Flat | N |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Diameter | 0.6250" (5/8) |
| Length of Cut | 1.3766" |
| Center Cutting | true |
