Helical Solutions
86371
HMAF-FE-40750-02-LNS
Specifications

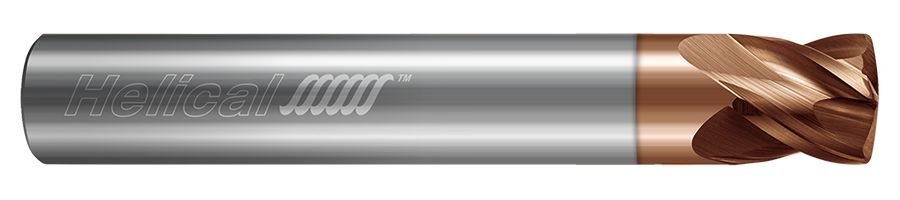

| Short Description | HMAF-FE-40750-02-LNS End Mills for Stainless & High Temp - Multi-Axis Finishers - 4 Flute - Lens Form |
|---|---|
| Long Description | 0.7500" (3/4) Cutter DIA x 0.7500" (3/4) Shank DIA x 1.5000" (1-1/2) Major Radius x 0.0450" Corner Radius x 0.7500" (3/4) Length of Cut x 4.0000" (4) Overall Length Carbide Lens Multi-Axis Finisher for Stainless and High Temp, 4 Flutes, TPLUS Coated - (HMAF-FE-40750-02-LNS) |
| Metric | N |
| Coolant Through | N |
| Coating | TPLUS |
| Shank Diameter | 0.7500" (3/4) |
| Flutes | 4 |
| Weldon Flat | N |
| Overall Length | 4.0000" (4) |
| Cutter Diameter | 0.7500" (3/4) |
| Length of Cut | 0.7500" (3/4) |
| Center Cutting | true |
| Corner Radius | 0.0450" |
