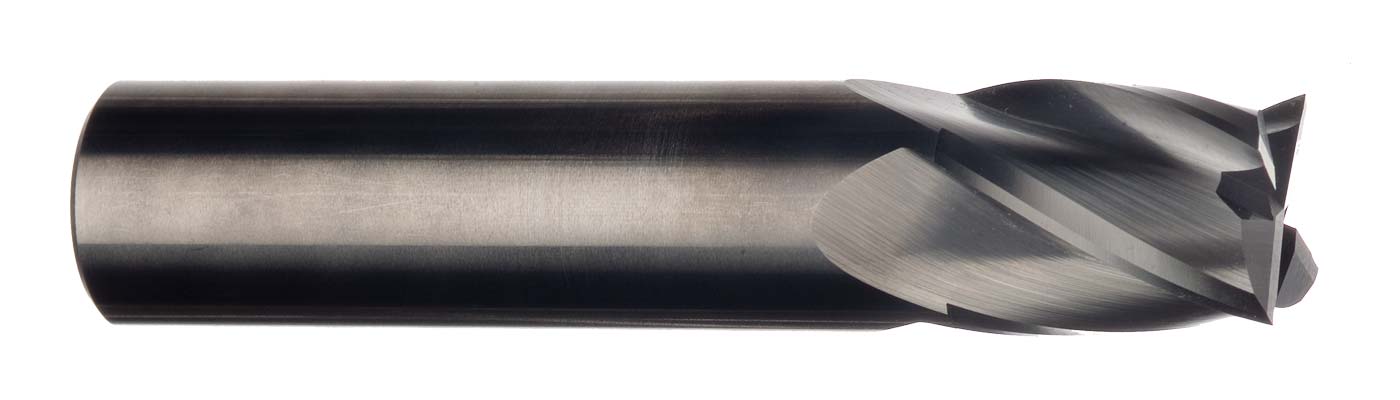

IMCO Carbide Tool
332276
E14-MG
Specifications
| Shank Size (Inch) | 5/16 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 5/16 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Short Description | E14 5/16 4F RR M/G End Mill |
| Shank Diameter | 5/16 in |
| Long Description | E14 5/16 4F RR M/G End Mill<br>5/16 x 5/16 x 13/16 x 2-1/2 MG |
| Series | truCORE |
| Flute Length (Fractional) | 13/16 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 5/16 in |
| Flute Length | 13/16 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E14 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 2-1/2 in |
