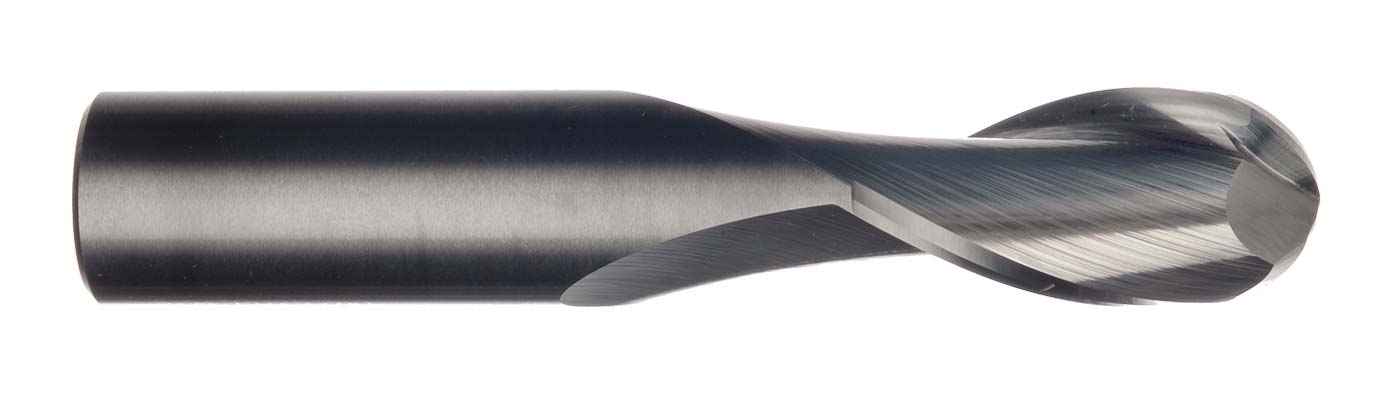

IMCO Carbide Tool
332304
E12B-MG
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Shank Size (Inch) | 1/8 |
| Material | Solid Carbide |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/16 |
| Unit Of Measure | Fractional |
| Short Description | E12B 1/16 2F RR M/G End Mill |
| Flute Length (Fractional) | 3/16 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 1/8 in |
| Long Description | E12B 1/16 2F RR M/G End Mill<br>1/16 x 1/8 x 3/16 x 1-1/2 MG |
| Series | truCORE |
| Flute Length | 3/16 Inch |
| Helix Angle | 30 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 1/16 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E12 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 1-1/2 in |
