IMCO Carbide Tool
332755
E24B-ALTIN
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 2 |
| Cutting Direction | Right Hand |
| Shank Size (Inch) | 3/16 |
| Material | Solid Carbide |
| Number Of Flutes | 4 |
| Diameter (Inch) | 5/32 |
| Unit Of Measure | Fractional |

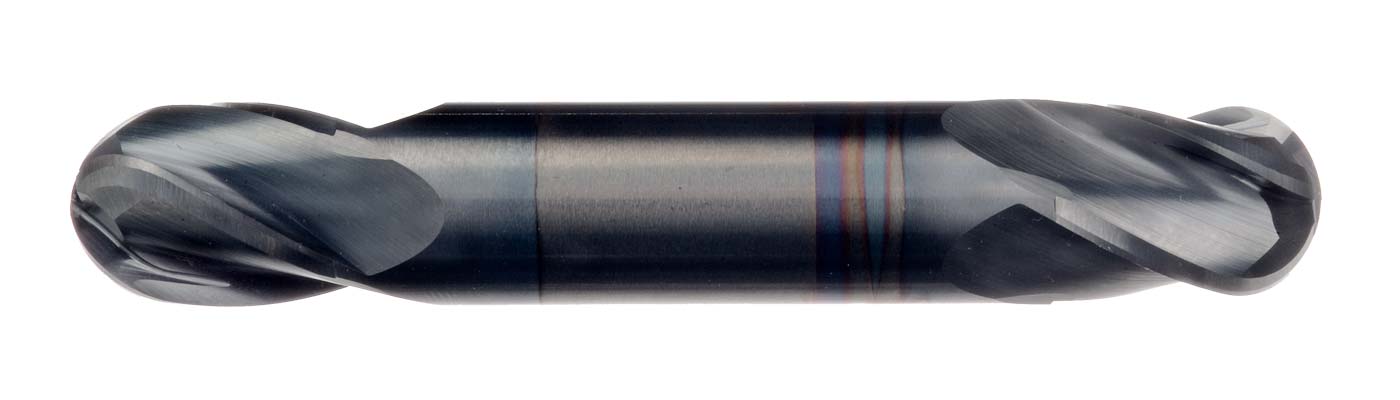

| Short Description | E24B 5/32 4F SR Spector DE End Mill |
| Flute Length (Fractional) | 5/16 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 3/16 in |
| Long Description | E24B 5/32 4F SR Spector DE End Mill<br>5/32 x 3/16 x 5/16 x 2 AlTiN |
| Series | truCORE |
| Flute Length | 5/16 Inch |
| Helix Angle | 30 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 5/32 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E24 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 2 in |
