IMCO Carbide Tool
333372
E14-ALTIN
Specifications
| Shank Size (Inch) | 1/2 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 6 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/2 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |

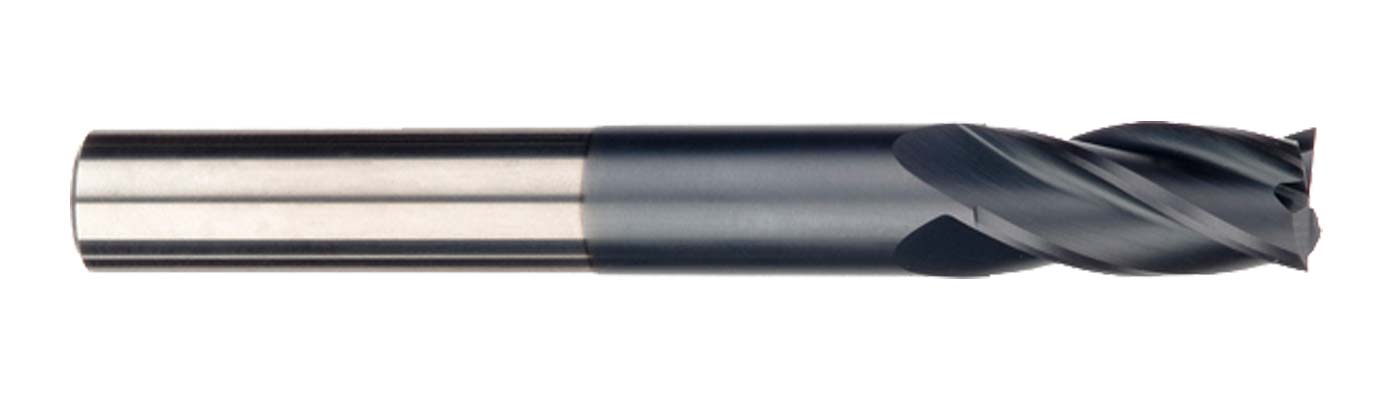

| Short Description | E14 1/2 4F XX Spector End Mill |
| Shank Diameter | 1/2 in |
| Long Description | E14 1/2 4F XX Spector End Mill<br>1/2 x 1/2 x 3 x 6 AlTiN |
| Series | truCORE |
| Flute Length (Decimal) | 3 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 1/2 in |
| Flute Length | 3 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E14 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 6 in |
