IMCO Carbide Tool
333946
E14-TICN
Specifications
| Shank Size (Inch) | 1 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 5 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | TiCN |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1 |
| Unit Of Measure | Imperial |
| Helix Angle | 30 degrees |

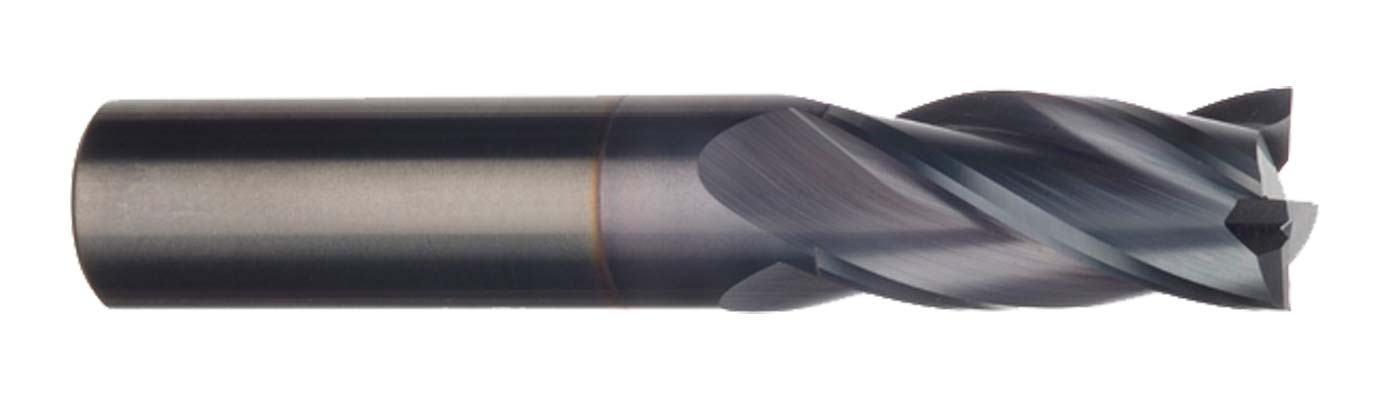

| Short Description | E14 1" 4F LL Accelerator Mill |
| Shank Diameter | 1 in |
| Long Description | E14 1" 4F LL Accelerator Mill<br>1 x 1 x 2-1/4 x 5 TiCN |
| Series | truCORE |
| Flute Length (Fractional) | 2-1/4 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 1 in |
| Flute Length | 2-1/4 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Trade Name | E14 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 5 in |
