IMCO Carbide Tool
333960
E12B-MG
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 3 |
| Cutting Direction | Right Hand |
| Shank Size (Inch) | 3/8 |
| Material | Solid Carbide |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/8 |
| Unit Of Measure | Fractional |

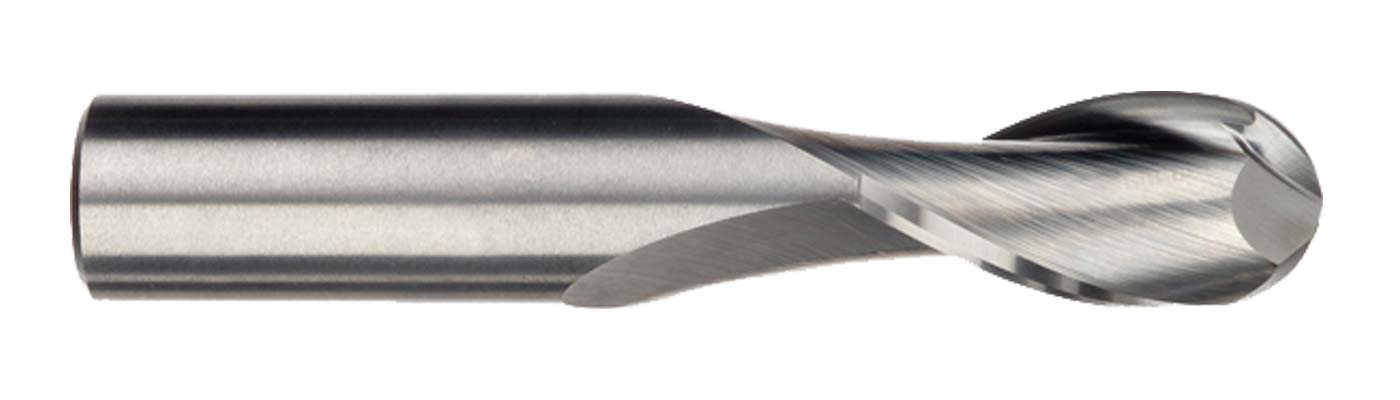

| Short Description | E12B 3/8 2F LL M/G End Mill |
| Flute Length (Fractional) | 1-1/8 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 3/8 in |
| Long Description | E12B 3/8 2F LL M/G End Mill<br>3/8 x 3/8 x 1-1/8 x 3 MG |
| Series | truCORE |
| Flute Length | 1-1/8 Inch |
| Helix Angle | 30 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 3/8 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E12 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 3 in |
