IMCO Carbide Tool
334413
E12B-MG
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 2 |
| Overall Length (Metric) | 38 |
| Cutting Direction | Right Hand |
| Shank Size (Metric) | 3 |
| Material | Solid Carbide |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |

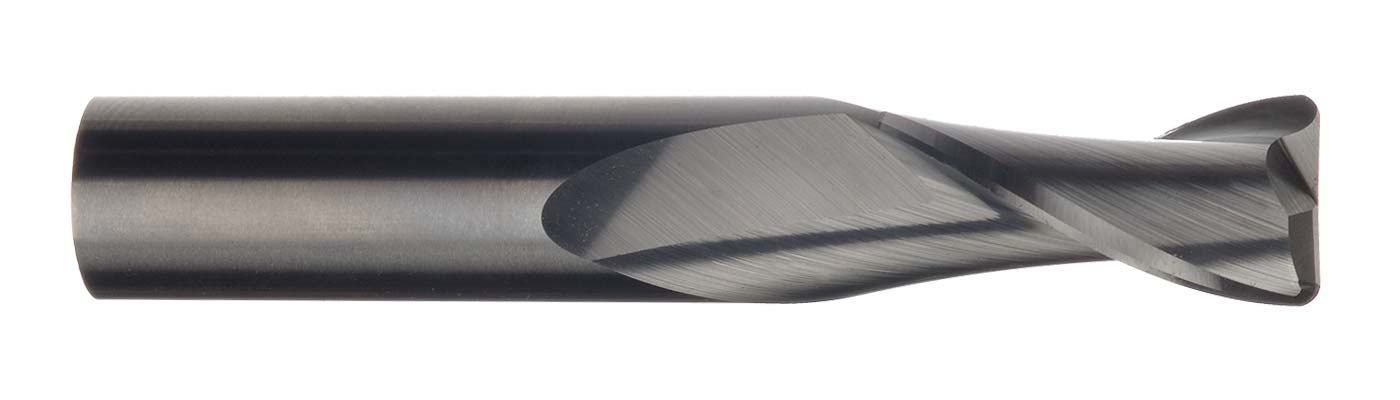

| Short Description | E12B 2,0 2F RR M/G End Mill |
| Flute Length (Metric) | 9 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 3 mm |
| Long Description | E12B 2,0 2F RR M/G End Mill<br>2 x 3 x 9 x 38 MG |
| Series | truCORE |
| Flute Length | 9 mm |
| Helix Angle | 30 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 2 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | E12 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 38 mm |
