IMCO Carbide Tool
334422
E12-ALTIN
Specifications
| Shank Size (Inch) | 1/8 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 1-1/2 |
| Number Of Flutes | 2 |
| Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/32 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |

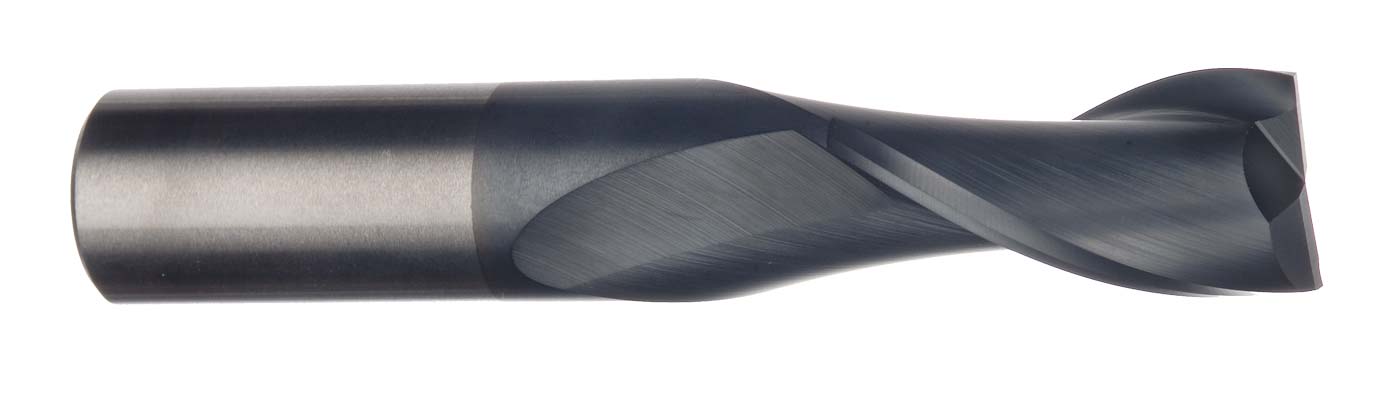

| Short Description | E12 1/32 2F SR Spector End Mill |
| Shank Diameter | 1/8 in |
| Long Description | E12 1/32 2F SR Spector End Mill<br>1/32 x 1/8 x 1/16 x 1-1/2 AlTiN |
| Series | truCORE |
| Flute Length (Fractional) | 1/16 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 1/32 in |
| Flute Length | 1/16 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | E12 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 1-1/2 in |
