IMCO Carbide Tool
334668
E14B-ALTIN
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 16 |
| Overall Length (Metric) | 125 |
| Cutting Direction | Right Hand |
| Shank Size (Metric) | 16 |
| Material | Solid Carbide |
| Number Of Flutes | 4 |
| Unit Of Measure | Metric |

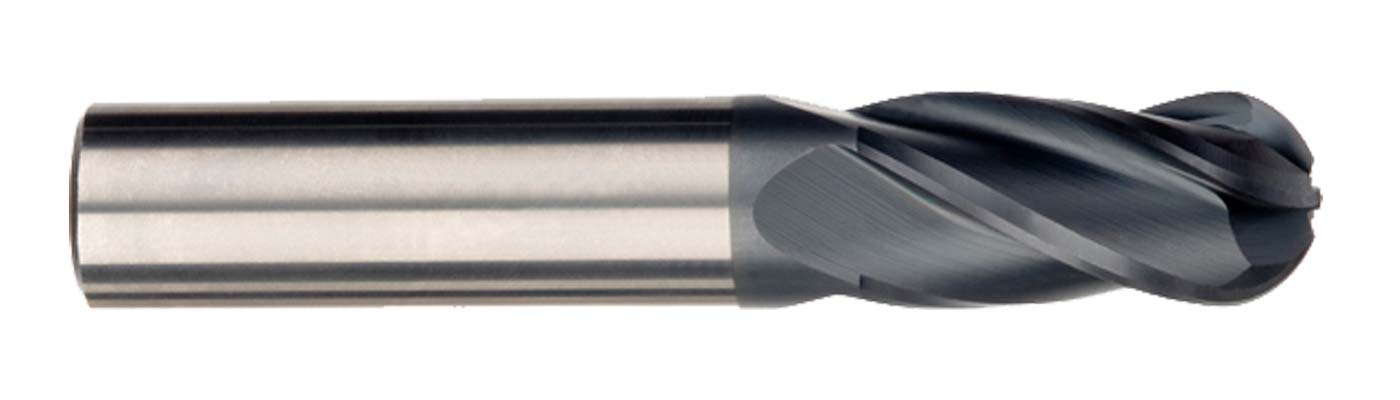

| Short Description | E14B 16,0 4F LL Spector End Mill |
| Flute Length (Metric) | 57 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 16 mm |
| Long Description | E14B 16,0 4F LL Spector End Mill<br>16 x 16 x 57 x 125 AlTiN |
| Series | truCORE |
| Flute Length | 57 mm |
| Helix Angle | 30 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 16 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | E14 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 125 mm |
