IMCO Carbide Tool
335213
E13-ALTIN
Specifications
| Shank Type | Plain |
|---|---|
| Overall Length (Metric) | 63 |
| Number Of Flutes | 3 |
| Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Diameter (Metric) | 4 |
| Shank Size (Metric) | 4 |
| Cutting Direction | Right Hand |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |

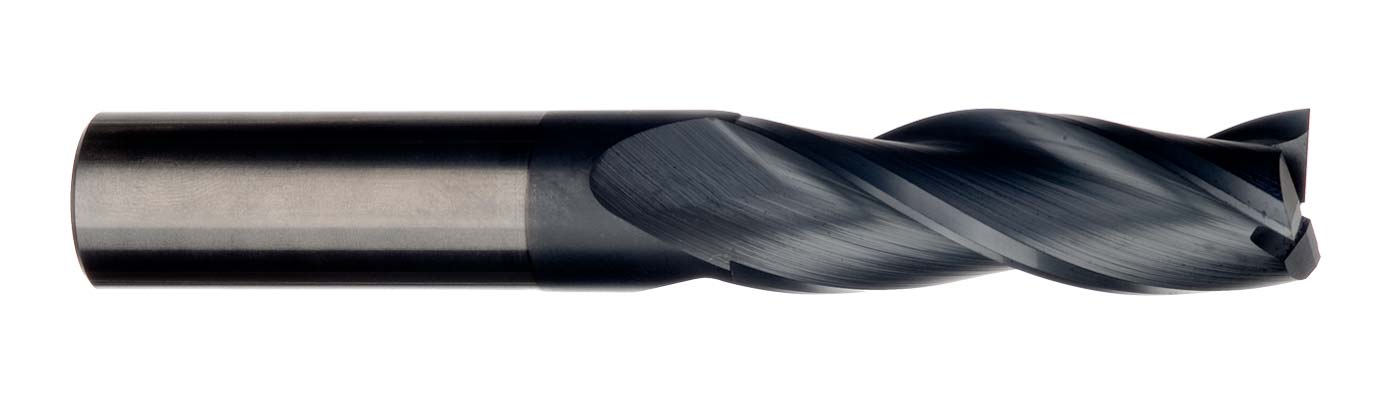

| Short Description | E13 4,0 3F LL Spector End Mill |
| Shank Diameter | 4 mm |
| Long Description | E13 4,0 3F LL Spector End Mill<br>4 x 4 x 19 x 63 AlTiN |
| Series | truCORE |
| Flute Length (Metric) | 19 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 4 mm |
| Flute Length | 19 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | E13 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 63 mm |
