IMCO Carbide Tool
335265
AFC5
Specifications
| Helix Angle | 35 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 1/2 |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 4 |
| Coating/Finish | taC |
| Number Of Flutes | 5 |
| Unit Of Measure | Fractional |
| Cutting Direction | Right Hand |

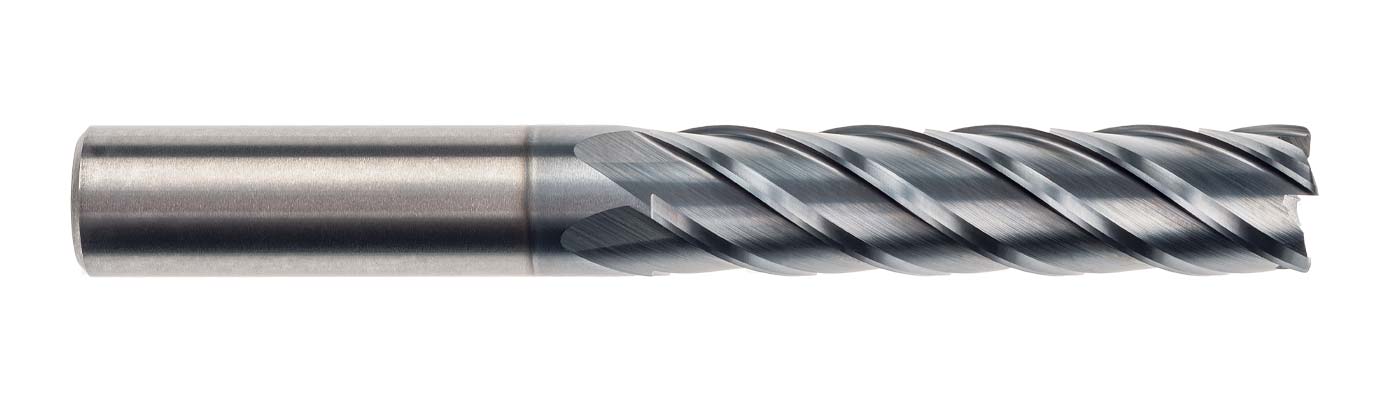

| Short Description | AFC5 1/2 5F .030R 4xD Aluminum Wall Finisher |
| Diameter | 1/2 in |
| Shank Size | 1/2 Inch |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | AFC5 1/2 5F .030R 4xD Aluminum Wall Finisher<br>1/2 x 1/2 x 2 x 4 hC |
| Flute Length (Decimal) | 2 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 2 in |
| Depth-to-Diameter Ratio | 4xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter | 1/2 in |
| Trade Name | AFC5 |
| End Style | 0.030 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.03 |
| OAL | 4 in |
