IMCO Carbide Tool
337020
M525N
Specifications
| Helix Angle | 40 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 16 |
| Type | High Performance |
| Overall Length (Metric) | 110 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1.5 |
| Number Of Flutes | 5 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |

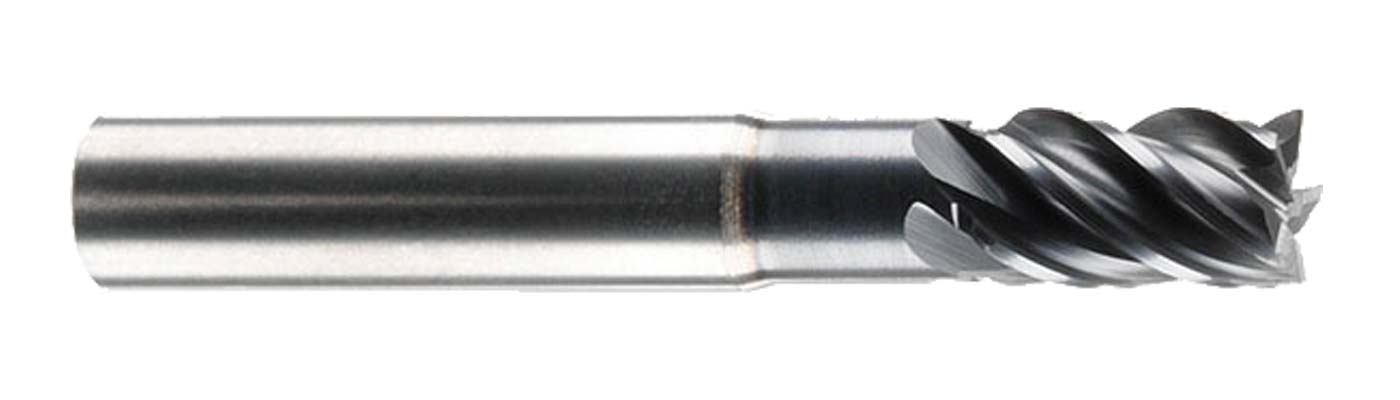

| Short Description | M525N 16,0 5F 1,5R enDURO Mill |
| Diameter | 16 mm |
| Shank Size | 16 mm |
| Overall Length | 110 mm |
| Shank Type | Plain |
| Series | enDURO |
| Long Description | M525N 16,0 5F 1,5R enDURO Mill<br>16 x 16 x 20 x 110 LBS=62 AlCrNX |
| Flute Length (Metric) | 20 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 20 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 16 mm |
| Trade Name | M525N |
| End Style | 1.500 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1.5 mm |
| OAL | 110 mm |
