IMCO Carbide Tool
337045
M525N
Specifications
| Shank Type | Plain |
|---|---|
| Overall Length (Metric) | 110 |
| Number Of Flutes | 5 |
| Material | Solid Carbide |
| Coating/Finish | AlCrNX |
| Diameter (Metric) | 16 |
| Shank Size (Metric) | 16 |
| Cutting Direction | Right Hand |
| Unit Of Measure | Metric |
| Helix Angle | 40 degrees |

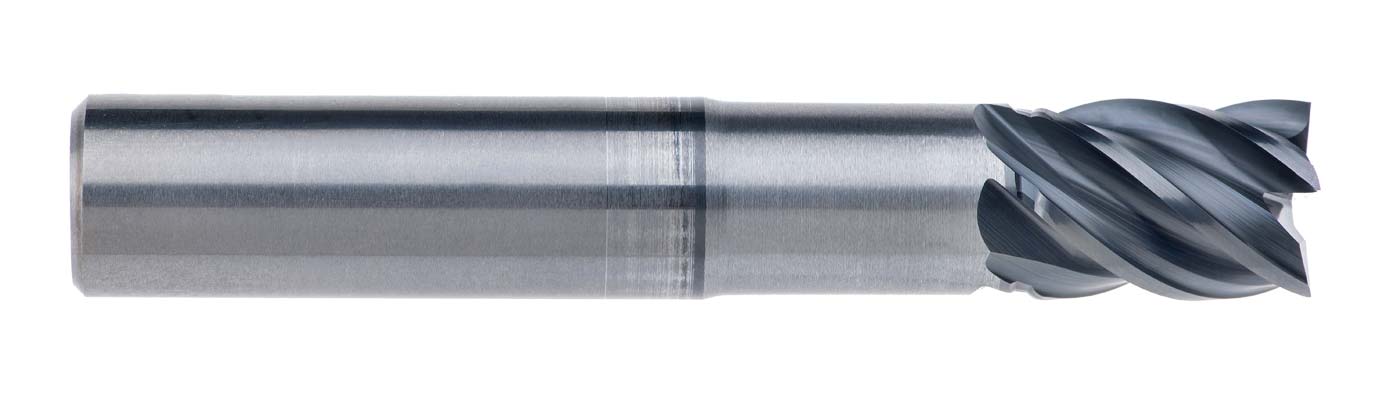

| Short Description | M525N 16,0 5F SQ enDURO Mill |
| Shank Diameter | 16 mm |
| Long Description | M525N 16,0 5F SQ enDURO Mill<br>16 x 16 x 20 x 110 LBS=62 AlCrNX |
| Series | enDURO |
| Flute Length (Metric) | 20 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 16 mm |
| Flute Length | 20 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | M525N |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 110 mm |
