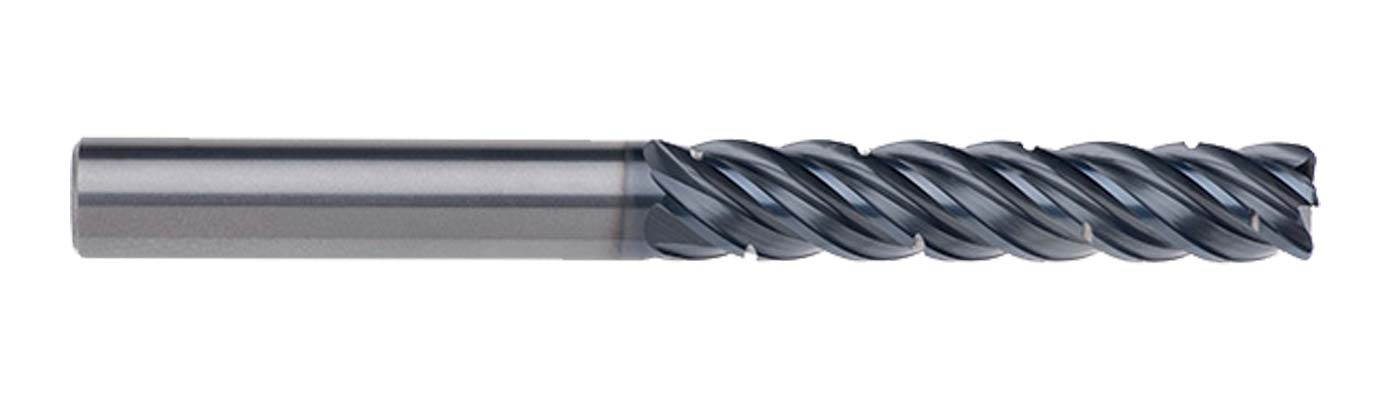

IMCO Carbide Tool
337180
M525C
Specifications
| Helix Angle | 40 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 25 |
| Type | High Performance |
| Overall Length (Metric) | 150 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1 |
| Number Of Flutes | 5 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | M525C 25,0 5F 1,0R XX enDURO Mill |
| Diameter | 25 mm |
| Shank Size | 25 mm |
| Overall Length | 150 mm |
| Shank Type | Plain |
| Series | enDURO |
| Long Description | M525C 25,0 5F 1,0R XX enDURO Mill<br>25 x 25 x 85 x 150 AlCrNX |
| Flute Length (Metric) | 85 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 85 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 25 mm |
| Trade Name | M525C |
| End Style | 1.000 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1 mm |
| OAL | 150 mm |
