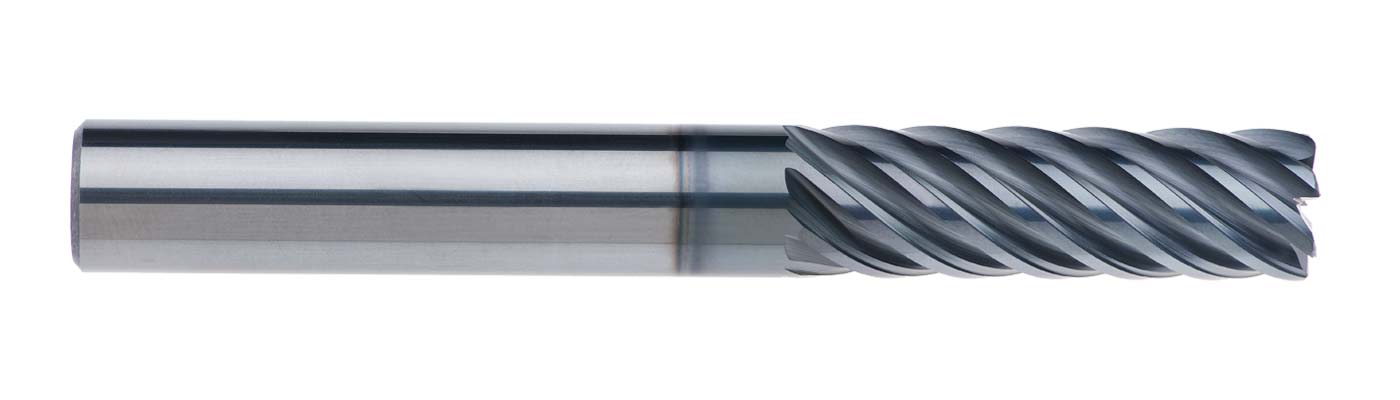

IMCO Carbide Tool
339062
M527
Specifications
| Helix Angle | 40 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 3/8 |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 3 |
| Type | High Performance |
| Coating/Finish | AlCrNX |
| Number Of Flutes | 7 |
| Unit Of Measure | Fractional |
| Cutting Direction | Right Hand |
| Short Description | M527 3/8 7F .030R LL enDURO Mill |
| Diameter | 3/8 in |
| Shank Size | 3/8 Inch |
| Shank Type | Plain |
| Series | enDURO |
| Long Description | M527 3/8 7F .030R LL enDURO Mill<br>3/8 x 3/8 x 1-1/4 x 3 AlCrNX |
| Flute Length (Fractional) | 1-1/4 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 1-1/4 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter | 3/8 in |
| Trade Name | M527 |
| End Style | 0.030 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.03 |
| OAL | 3 in |
