IMCO Carbide Tool
339549
APC5
Specifications
| Helix Angle | 35 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 3/4 |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 5 |
| Coating/Finish | taC |
| Number Of Flutes | 5 |
| Unit Of Measure | Fractional |
| Cutting Direction | Right Hand |

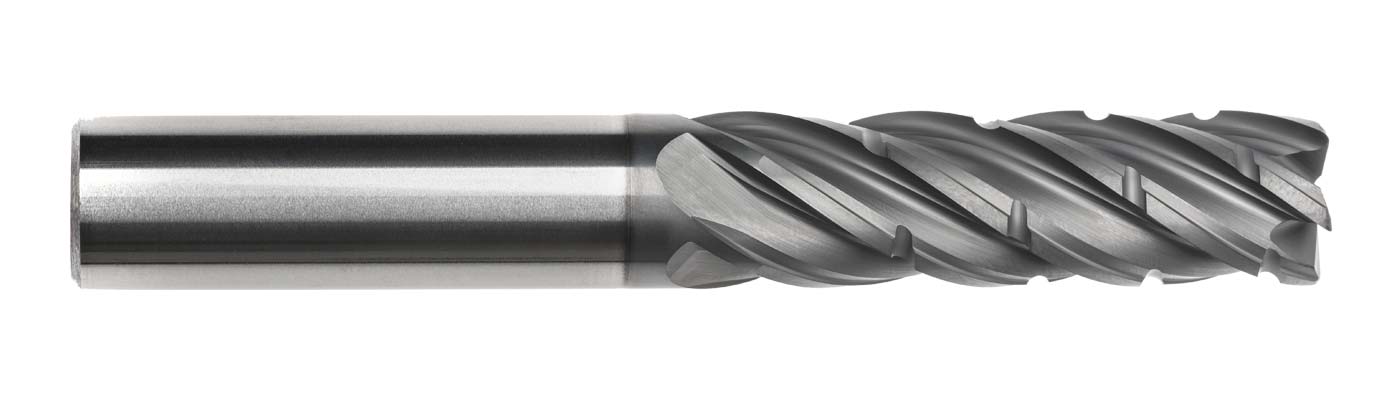

| Short Description | APC5 3/4 5F .030R 3xD Pow-R-Path Mill |
| Diameter | 3/4 in |
| Shank Size | 3/4 Inch |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | APC5 3/4 5F .030R 3xD Pow-R-Path Mill<br>3/4 x 3/4 x 2-1/4 x 5 taC |
| Flute Length (Fractional) | 2-1/4 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 2-1/4 in |
| Depth-to-Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter | 3/4 in |
| Trade Name | APC5 |
| End Style | 0.030 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.03 |
| OAL | 5 in |
