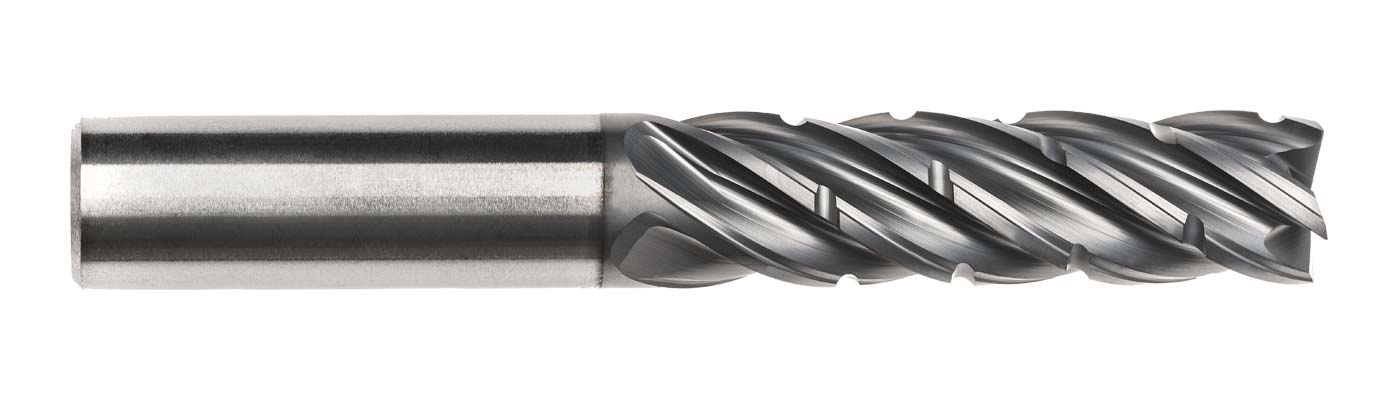

IMCO Carbide Tool
339556
APC5
Specifications
| Shank Size (Inch) | 1 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 6 |
| Number Of Flutes | 5 |
| Material | Solid Carbide |
| Coating/Finish | taC |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1 |
| Unit Of Measure | Imperial |
| Helix Angle | 35 degrees |
| Short Description | APC5 1" 5F SQ 3xD Pow-R-Path Mill |
| Shank Diameter | 1 in |
| Long Description | APC5 1" 5F SQ 3xD Pow-R-Path Mill<br>1 x 1 x 3 x 6 taC |
| Series | POW-R-PATH |
| Flute Length (Decimal) | 3 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 1 in |
| Flute Length | 3 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Trade Name | APC5 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 6 in |
