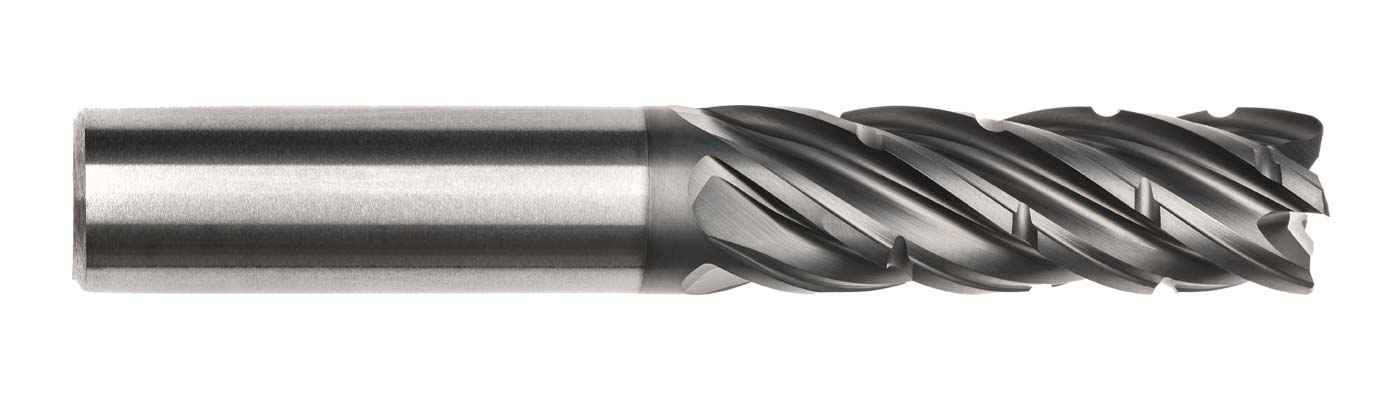

IMCO Carbide Tool
339561
APC5
Specifications
| Helix Angle | 35 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 10 |
| Overall Length (Metric) | 75 |
| Coating/Finish | taC |
| Corner Radius (Metric) | 0.5 |
| Number Of Flutes | 5 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | APC5 10,0 5F 0,5R 3xD Pow-R-Path Mill |
| Diameter | 10 mm |
| Shank Size | 10 mm |
| Overall Length | 75 mm |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | APC5 10,0 5F 0,5R 3xD Pow-R-Path Mill<br>10 x 10 x 30 x 75 taC |
| Flute Length (Metric) | 30 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 30 mm |
| Depth-to-Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 10 mm |
| Trade Name | APC5 |
| End Style | 0.500 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.5 |
| OAL | 75 mm |
