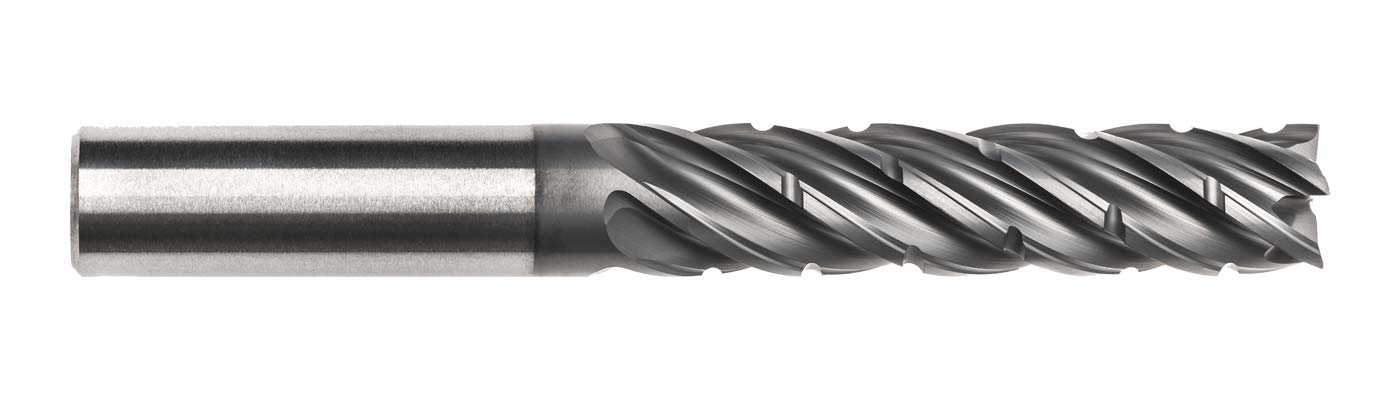

IMCO Carbide Tool
339586
APC5
Specifications
| Shank Type | Plain |
|---|---|
| Overall Length (Metric) | 150 |
| Number Of Flutes | 5 |
| Material | Solid Carbide |
| Coating/Finish | taC |
| Diameter (Metric) | 20 |
| Shank Size (Metric) | 20 |
| Cutting Direction | Right Hand |
| Unit Of Measure | Metric |
| Helix Angle | 35 degrees |
| Short Description | APC5 20,0 5F SQ 4xD Pow-R-Path Mill |
| Shank Diameter | 20 mm |
| Long Description | APC5 20,0 5F SQ 4xD Pow-R-Path Mill<br>20 x 20 x 80 x 150 taC |
| Series | POW-R-PATH |
| Flute Length (Metric) | 80 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 20 mm |
| Flute Length | 80 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | APC5 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 150 mm |
