IMCO Carbide Tool
339684
APT5
Specifications
| Helix Angle | 35 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 1 |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 5 |
| Coating/Finish | taC |
| Number Of Flutes | 5 |
| Unit Of Measure | Imperial |
| Cutting Direction | Right Hand |

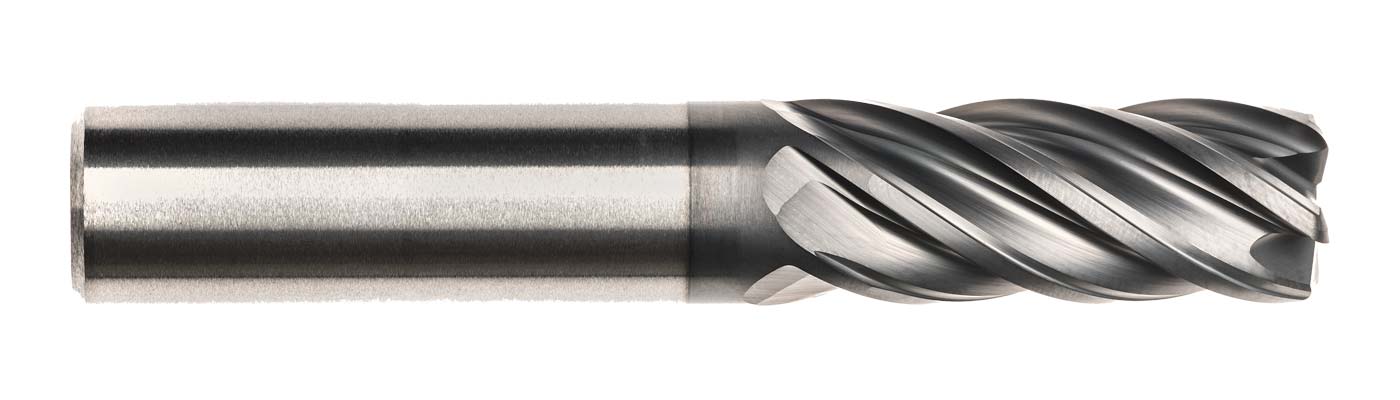

| Short Description | APT5 1" 5F .030R 2xD Pow-R-Path Mill |
| Diameter | 1 in |
| Shank Size | 1 Inch |
| Overall Length | 5 Inch |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | APT5 1" 5F .030R 2xD Pow-R-Path Mill<br>1 x 1 x 2 x 5 taC |
| Flute Length (Decimal) | 2 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 2 in |
| Depth-to-Diameter Ratio | 2xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 1 in |
| Trade Name | APT5 |
| End Style | 0.030 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.03 |
| OAL | 5 in |
