IMCO Carbide Tool
339727
APT5N
Specifications
| Shank Size (Inch) | 1/2 |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 4 |
| Number Of Flutes | 5 |
| Material | Solid Carbide |
| Coating/Finish | taC |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/2 |
| Unit Of Measure | Fractional |
| Helix Angle | 35 degrees |

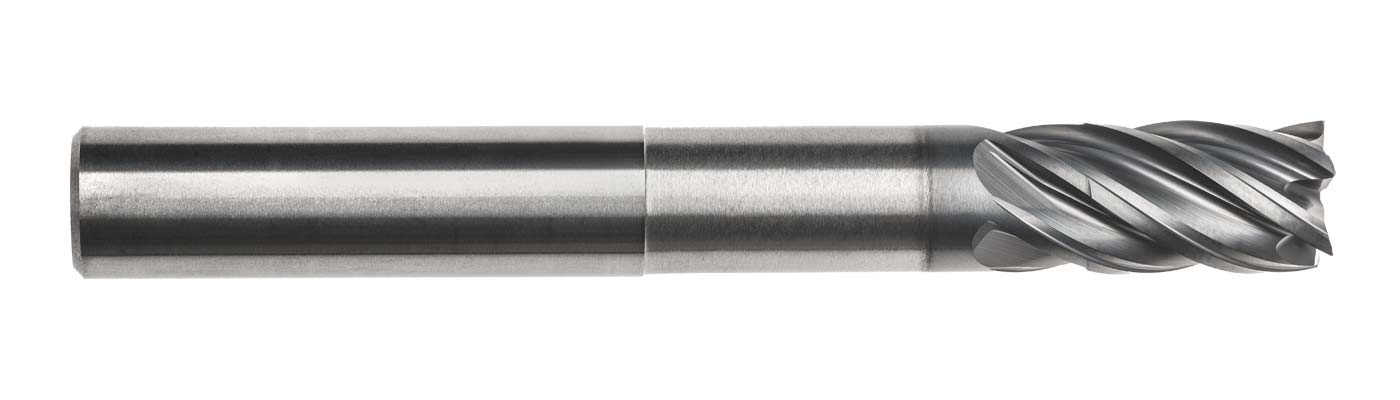

| Short Description | APT5N 1/2 5F SQ 1.5xD Pow-R-Path Mill |
| Shank Diameter | 1/2 in |
| Long Description | APT5N 1/2 5F SQ 1.5xD Pow-R-Path Mill<br>1/2 x 1/2 x 3/4 x 4 LBS=2-1/8 taC |
| Series | POW-R-PATH |
| Flute Length (Fractional) | 3/4 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 1/2 in |
| Flute Length | 3/4 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | APT5N |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 4 in |
