IMCO Carbide Tool
339821
APT5
Specifications
| Helix Angle | 35 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 10 |
| Overall Length (Metric) | 88 |
| Coating/Finish | taC |
| Corner Radius (Metric) | 0.5 |
| Number Of Flutes | 5 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |

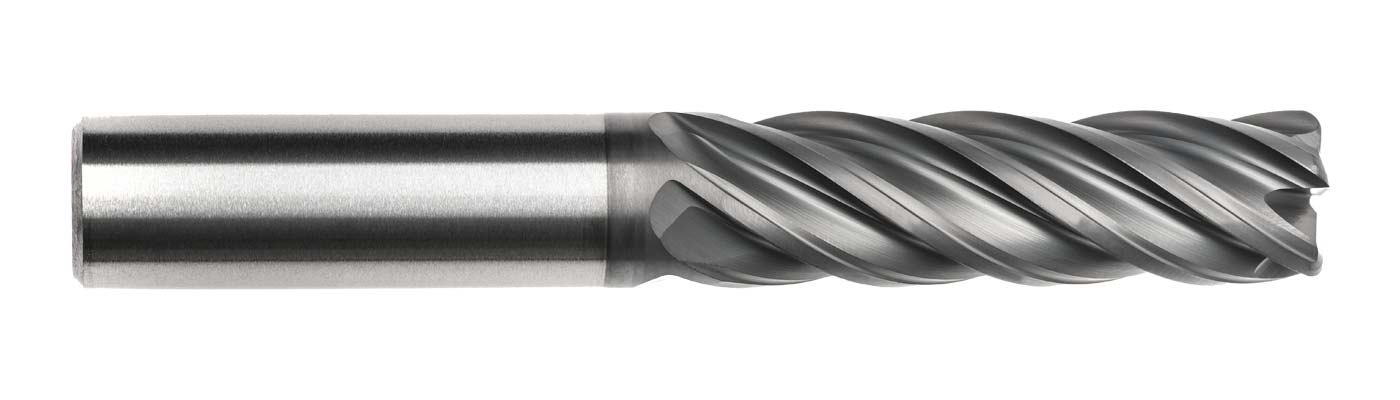

| Short Description | APT5 10,0 5F 0,5R 4xD Pow-R-Path Mill |
| Diameter | 10 mm |
| Shank Size | 10 mm |
| Overall Length | 88 mm |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | APT5 10,0 5F 0,5R 4xD Pow-R-Path Mill<br>10 x 10 x 40 x 88 taC |
| Flute Length (Metric) | 40 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 40 mm |
| Depth-to-Diameter Ratio | 4xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 10 mm |
| Trade Name | APT5 |
| End Style | 0.500 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.5 mm |
| OAL | 88 mm |
