IMCO Carbide Tool
340251
IPT7
Specifications
| Shank Type | Plain |
|---|---|
| Overall Length (Metric) | 88 |
| Number Of Flutes | 7 |
| Material | Solid Carbide |
| Coating/Finish | AlCrNX |
| Diameter (Metric) | 10 |
| Shank Size (Metric) | 10 |
| Cutting Direction | Right Hand |
| Unit Of Measure | Metric |
| Helix Angle | 40 degrees |

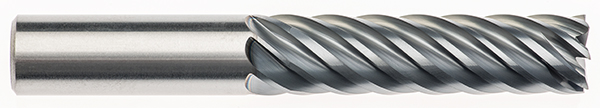

| Short Description | IPT7 10,0 7F SQ 4xD Pow-R-Path Mill |
| Shank Diameter | 10 mm |
| Long Description | IPT7 10,0 7F SQ 4xD Pow-R-Path Mill<br>10 x 10 x 40 x 88 AlCrNX |
| Series | POW-R-PATH |
| Flute Length (Metric) | 40 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Radius Size | SQ |
| Diameter | 10 mm |
| Flute Length | 40 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | IPT7 |
| End Style | Square End |
| Tool Material | Solid Carbide |
| OAL | 88 mm |
