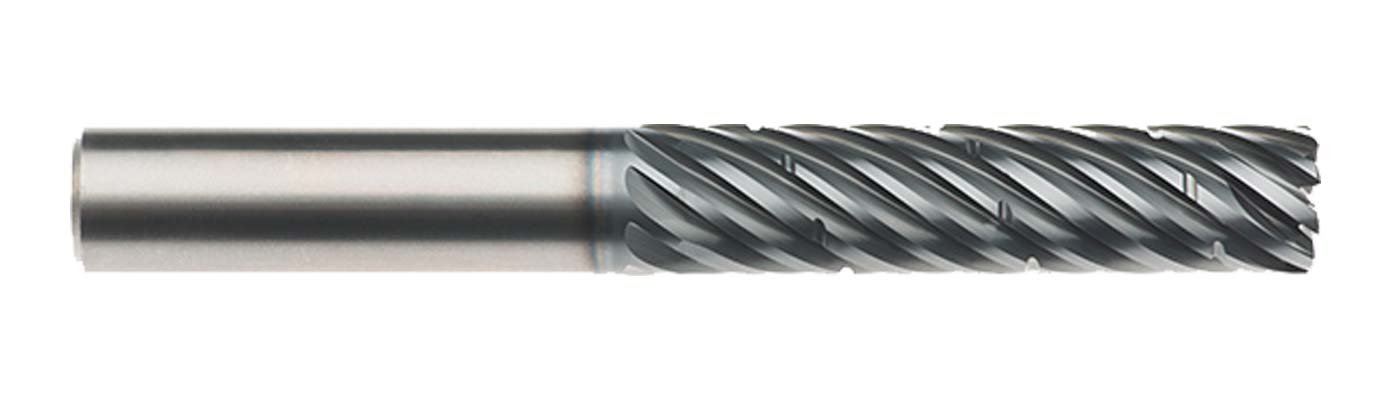

IMCO Carbide Tool
340457
IPC9
Specifications
| Helix Angle | 36 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 16 |
| Overall Length (Metric) | 110 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1 |
| Number Of Flutes | 9 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | IPC9 16,0 9F 1,0R 3.5xD Pow-R-Path Mill |
| Diameter | 16 mm |
| Shank Size | 16 mm |
| Overall Length | 110 mm |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | IPC9 16,0 9F 1,0R 3.5xD Pow-R-Path Mill<br>16 x 16 x 56 x 110 AlCrNX |
| Flute Length (Metric) | 56 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 56 mm |
| Depth-to-Diameter Ratio | 3.5xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 16 mm |
| Trade Name | IPC9 |
| End Style | 1.000 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1 mm |
| OAL | 110 mm |
