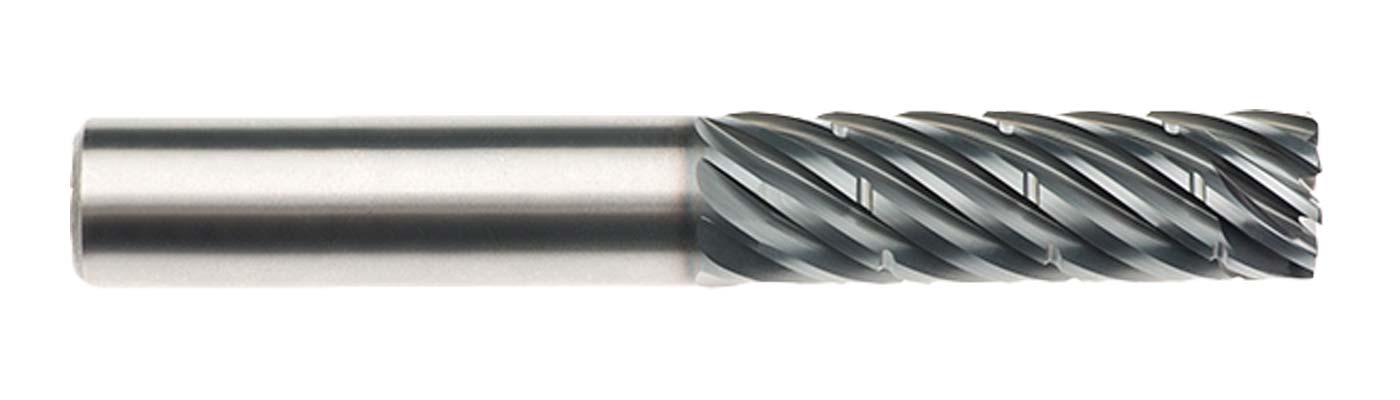

IMCO Carbide Tool
340459
IPC9
Specifications
| Helix Angle | 36 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 20 |
| Overall Length (Metric) | 104 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1 |
| Number Of Flutes | 9 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | IPC9 20,0 9F 1,0R 2xD Pow-R-Path Mill |
| Diameter | 20 mm |
| Shank Size | 20 mm |
| Overall Length | 104 mm |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | IPC9 20,0 9F 1,0R 2xD Pow-R-Path Mill<br>20 x 20 x 40 x 104 AlCrNX |
| Flute Length (Metric) | 40 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 40 mm |
| Depth-to-Diameter Ratio | 2xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 20 mm |
| Trade Name | IPC9 |
| End Style | 1.000 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1 mm |
| OAL | 104 mm |
